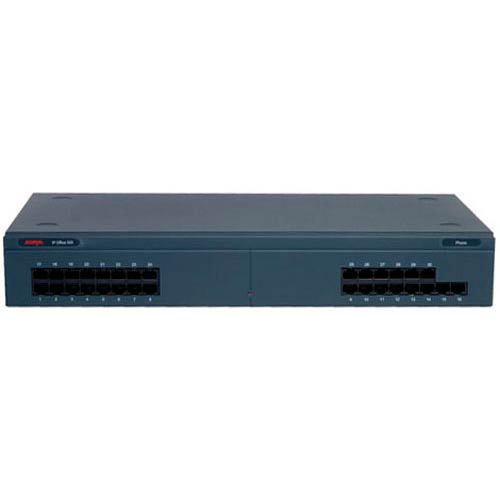

Avaya 700426224 IP Office 500 Expansion Module Phone 30

Avaya
700426224

spacer
showlarger

Previous  Up  Next"

Avaya 700426224 IP Office 500 Expansion Module Phone 30

Avaya

This item has been discontinued. Please call 800-641-6416 for information on alternatives.

SKU:700426224

List Price:
$4,200.00
You Save:
(23.90%) $1,004.00
Our Price:
$3,196.00

An analog extension port can be set for external Paging operation. It does not operate like a normal extension and is connected to external equipment through an isolation device. The Port will always be busy so it cannot be called directly and can only be accessed by using a shortcode. When not receiving a Page the port will remain silent, when being paged the page tone is sent before the speech path is opened.

Each analog port can support a device of maximum 1 REN.

IP Office Phone Modules provide support for a variety of analog MWI (Message Waiting Indication) methods. These methods are 51V Stepped, 81V, 101V and Line Reversal. The 101V method is only supported when using a Phone V2 expansion module.

On analog ports, call information is sent while the phone is ringing, and cannot be updated during a call or set on an outbound call (the phone may do a local match but this is not controlled by the IP Office). The primary purpose of displays is to give information about incoming calls. Where the Caller Display standard chosen supports the delivery of text (extension name) as well as the number, both are delivered.

Telephones can be located up to 1km from the control unit. For extensions located "out-of-the-building" additional line protection will be needed. For more information on cabling and out of building guidelines, see the IP Office Installation Manual.

This module provides for up to 30 additional analog telephone interfaces

  • Caller ID identifies incoming calls quickly
  • Time break recall
  • Message waiting indicator
  • Provides POT ports for analog telephones

Product also known as:

700426224, Avaya 700426224, IPO 500 EXP MOD PHONE 30 , 700426224
